This article describes how to compile OpenNMS from source. If you have not set up your environment properly, please see here. Checkout the Code First of all, the code should be checked out. I usually do this in my ~/dev directory: git clone https://github.com/OpenNMS/opennms.git This will create an opennms directory in ~/dev/opennms. Next cd into it: cd opennms. Build from Source TL;DR Regular development time (.

Here we cover what is necessary to build OpenNMS from Source and afterwards start it locally on your Mac OS system. Compile Prerequisites In order to compile OpenNMS at least the following requirements should be met: The latest JDK 8 version should be installed makensis cloned github OpenNMS repository maven (optional) Run Prerequisites PostgreSQL server Jicmp, jicmp6 (both optional)

The other day I found my self in the lucky position to upgrade Karaf to a newer version. While doing that I also wrote something about our Http Bridge and why it was not be the best decision to integrate Karaf inside Jetty instead of the other way around. While implementing the Upgrade I asked my self how hard could it be to get some components of now running from within Jetty to running in Karaf.

Today I wanted to wire in the new GraphService into OpenNMS and have a graph:list command show a GraphML graph I sent to the /opennms/rest/graphml endpoint. The idea was to leverage the GraphmlRepository to also store a configuration file for a new GraphMLGraphContainerProviderServiceFactory implementing a ManagedServiceFactory. Basically the same as we already do with the GraphMLTopologyFactory I wired everything together and was also able to install the features. However as soon as I send the graphml document to the rest endpoint via (of course OpenNMS should be started)

While working on the persistence for the new graph service I encountered a weird behaviour: Each time a persisted graph is altered the edges were removed. So I investigated and it turns out if you are using hibernate inheritance in combination with the @Where clause hibernate only persists the entities which have been modified and removes the relation to the others, but keeps the entities sigh. For more clarity, here is the original code

Sometimes it is required to show a (bundle) configuration from the Karaf Shell. This may be on OpenNMS, Minion or Sentinel. First of all a connection to the Karaf Shell must be made. Here is described on how to do this. The according ports can be found here. Now let’s assume we want to see the current values of the id, location and other settings on Minion. First of all we need to know in which cfg file the property is located.

Here I explained on how to connect to the OpenNMS Karaf Shell. However when connecting to Sentinel or Minion the ports are different. The following table shows the default ports for each system System Port OpenNMS 8101 Minion 8201 Sentinel 8301

OpenNMS uses Apache Karaf under the hood and in some cases (especially during development) it is required to connect to the OpenNMS Karaf Shell. First of all OpenNMS must be started to connect to the Karaf Shell. I usually start OpenNMS with the -v (verbose) and -t (debug) options: $OPENNMS_HOME/bin/opennms -vt start Afterwards I check with $OPENNMS_HOME/bin/opennms -v status until the Jetty Webserver is STARTED, as the Karaf Container is started by the Webapp itself.

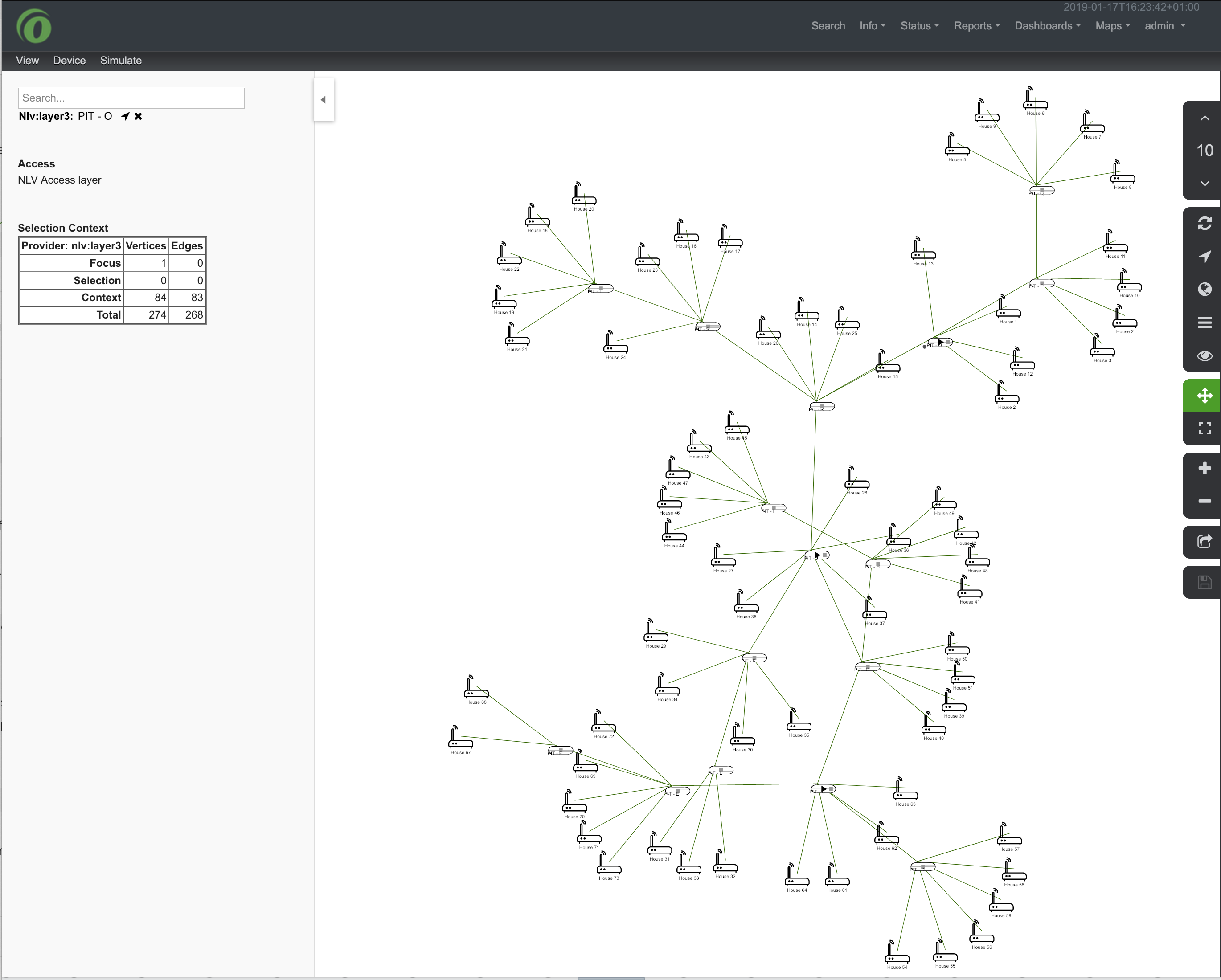

One user in the community is using the GraphML Topology and asked me in chat if it were possible to add tooltips to a vertex from within a groovy script. Short answer: Yes Long answer By default, setting the tooltip is supposed to work only by setting it directly in the graphml file itself. The official documentation for this says, that the name of the attribute is tooltipText. So if you are looking for static tooltips, that is the way to go.
